A29688-000 | Raychem

Heatshrink tubing, 2:1, (12.7/6.3 mm), white, A29688-000

Order No.: 39P9042
EAN: 4099891276744
MPN:
A29688-000
HX-SCE-1K-12.7-50-9
A29688-000 Raychem Heat Shrink Tubing

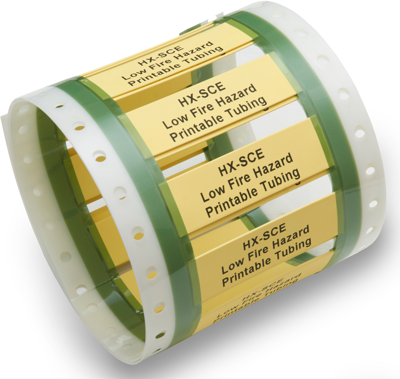

Image may differ
Unit Price (€ / mtr.)
1.6184 € *
Available in 5 Days: 2,907 mtr. - if ordered today
Total Price:
1,618.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 mtr.
1.6184 €

Heat shrink tubing, RW-175-E-1/4-X-SP, Raychem

RW-175-E-1/4-X-SP is a highly flame-resistant, high-temperature, chemical-resistant. This product provides tough, semirigid, very-thin-wall insulation and strain relief of multipin connectors, solder joints and other delicate electrical connections and terminations. It is well-suited for applications that require dense packing of components or visual inspection of covered components.

Features

  • 2:1 Shrink ratio
  • Tough, semirigid, very-thin-wall insulation
  • High flame-resistance
  • Protection from most industrial solvents, fuels, and chemicals
  • Meets NASA outgassing requirements
Technical specifications
Filter Property Value
Inner diameter before shrinkage 12.7 mm
Shrinking rate 2:1
Colour white
Inner diameter after shrinkage 6.3 mm
contains glue inside No
max. operating temperature 105 °C
Length 50 mm
min. operating temperature -55 °C
Logistics
Property Value
Country of origin US
Customs tariff number 39173200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
