9203730001 | Raychem
Heatshrink tubing, 3:1, (19.05/6.35 mm), PE, white, 9203730001
Unit Price (€ / pc.)
2.9036 € *
Available in 5 Days: 3,000 pcs. - if ordered today
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.6656 €
50 pcs.
2.4038 €
100 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale

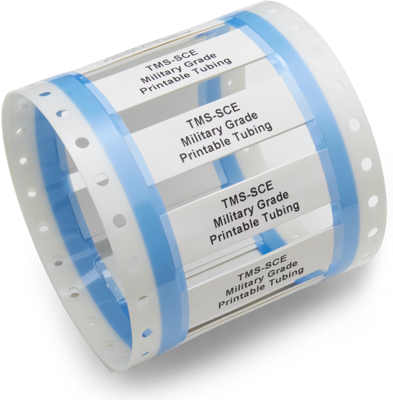

Heat-shrink identification sleeve, 9203730001, Raychem
The 9203730001 is a thin wall, light weight, fast recovery 3:1 shrink ratio sleeve, allowing the customer to cover a wide range of cable diameters. Suitable for a wide variety of applications, including aerospace, military, industrial and energy. This product is made from durable, flame retarded, radiation cross linked heat shrinkable polyolefin. Supplied in ‘ladder format’, sleeves are presented for ease of printing and kitting.
Features
- Self-extinguishing, non-flame propagating
- Can be laser marked for superior performance
- Military grade performance
- Pre-termination Cable Identification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 25.4 mm | |
| Inner diameter before shrinkage | 19.05 mm | |
| Inch Size | 3/4 | |
| Shrinking rate | 3:1 | |
| Wall thickness | 0.61 mm | |
| Inner diameter after shrinkage | 6.35 mm | |
| Colour | white | |
| Material | PE | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
