9166110001 | Raychem
Heatshrink tubing, 2:1, (6.35/3.18 mm), PVDF, black, 9166110001
Order No.: 72P2229
EAN: 4099891655167
MPN:
9166110001
HT-SCE-1/4-2.0-S1-0
Unit Price (€ / pc.)
5.4978 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
5.50 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4978 €
10 pcs.
5.1051 €
25 pcs.
4.7600 €
50 pcs.
4.3316 €
*incl. VAT plus shipping costs
Subject to prior sale

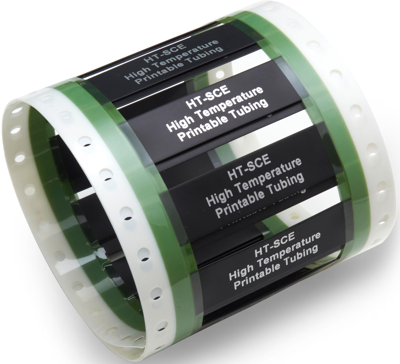

Heat-shrink identification sleeve, 9166110001, Raychem
The 9166110001 is a heat shrink identification sleeve, designed for use in high temperature applications where extreme resistance to fuels, lubricants and cleaning solvents is required. This product is ideal for applications where low-vacuum outgassing is of high importance. The identification sleeve is made of highly flame retardant, heat-shrinkable fluoropolymer tubing.
Features
- Self-extinguishing, non-flame propagating
- Resistant to key rail, industrial and military fluids
- Designed for rugged environments
- Military grade performance
- Pre-termination Cable Identification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 6.35 mm | |
| Length | 25.4 mm | |
| Inch Size | 1/4 | |
| max. operating temperature | 225 °C | |
| Shrinking rate | 2:1 | |
| Inner diameter after shrinkage | 3.18 mm | |
| min. operating temperature | -55 °C | |
| Material | PVDF | |
| Colour | black | |
| Wall thickness | 0.38 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 49119900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
