6472296001 | Raychem

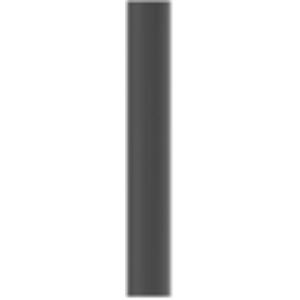

Heatshrink tubing, 2:1, (9.5/4.8 mm), PE, black, 6472296001
Unit Price (€ / mtr.)
20.1348 € *
Standard delivery time from the manufacturer is: 12 Weeks
Heat shrink tubing, RNF-3000-24/8-2-STK, Raychem
RNF-3000-24/8-2-STK is a flexible, high-shrink-ratio, flame-retardant, general purpose, polyolefin tubing. This product is used for insulation and strain relief of wire terminations and electrical connections. Also is suitable for light-duty harnessing, jacketing, and identification of wires, cables, and electrical and electronic components.
Features
- 3:1 Shrink ratio
- Excellent physical chemical
- Flame-retardant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 9.5 mm | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 4.8 mm | |
| Material | PE | |
| Wall thickness | 0.65 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
