5677572005 | Raychem
Heatshrink tubing, 3:1, (6/2 mm), PE, crosslinked, black, 5677572005
Unit Price (€ / pc.)
2.3800 € *
Available: 83 pcs.
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.2015 €
25 pcs.
2.0468 €
50 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, RNF-100-3/32-X-STK, Raychem

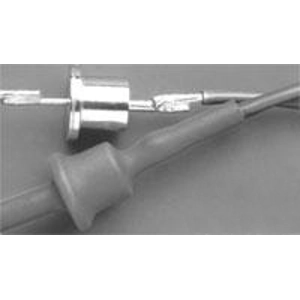

RNF-100-3/32-X-STK is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- 2:1 shrink ratio
- Flexible; conforms to irregular shapes
- Flame-retardant
- Wide range of sizes and colors
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking temperature | 80 °C | |
| Inner diameter after shrinkage | 2 mm | |
| Wall thickness | 0.65 mm | |
| contains glue inside | No | |
| Shrinking rate | 3:1 | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Material | PE, crosslinked | |
| Inner diameter before shrinkage | 6 mm | |
| max. operating temperature | 135 °C | |
| Length | 1.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
