531520-000 | Raychem
Heatshrink tubing, 2:1, (38.1/19.1 mm), PVDF, white, 531520-000
Unit Price (€ / pc.)
15.0773 € *
Available in 5 Days: 1,854 pcs. - if ordered today
Total Price:
15.08 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0773 €
10 pcs.
13.8635 €
50 pcs.
12.4831 €
100 pcs.
11.2336 €
*incl. VAT plus shipping costs
Subject to prior sale

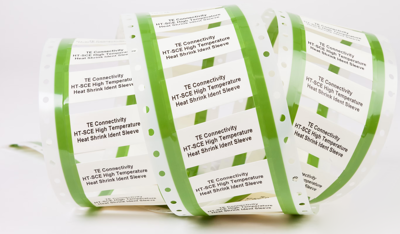

Heat-shrink identification sleeve, 531520-000, Raychem
The 531520-000 is a heat shrink identification sleeve, that is designed to use in high temperature applications or where extreme resistance to fuels, lubricants and cleaning solvents is required. This product is ideal for applications where low-vacuum outgassing is of high importance. This identification sleeve is made of highly flame retardant, heat-shrinkable fluoropolymer tubing.
Features
- High temperature
- Low vacuum outgassing
- Self-extinguishing, non-flame propagatin
- Designed for rugged environments
- Pre-termination Cable Identification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 50.8 mm | |
| Inner diameter before shrinkage | 38.1 mm | |
| Inch Size | 1/2 | |
| Shrinking rate | 2:1 | |
| Wall thickness | 0.38 mm | |
| Inner diameter after shrinkage | 19.1 mm | |
| Colour | white | |
| Material | PVDF | |
| max. operating temperature | 225 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 49119900 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
