5072014001 | Raychem

Heatshrink tubing, 2:1, (31.8/15.9 mm), PE, crosslinked, transparent, 5072014001

Order No.: 35P3040
EAN: 4099891273002
MPN:
5072014001
RNF-100-1-1/4-X-SP
Series: RNF-100

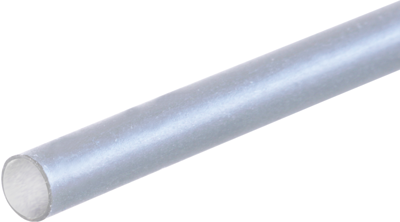

5072014001 Raychem Heat Shrink Tubing
Image may differ
Unit Price (€ / mtr.)
3.4629 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
13,089.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
3780 mtr.
3.4629 €

Heat shrink tubing, RNF-100-1-1/2-4-STK, Raychem

RNF-100-1-1/2-4-STK is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.

Features

  • 2:1 shrink ratio
  • Flexible; conforms to irregular shapes
  • Flame-retardant
  • Wide range of sizes and colors
  • RoHS compliant
Technical specifications
Filter Property Value
Inner diameter after shrinkage 15.9 mm
Inch Size 1 1/4
Material PE, crosslinked
Inner diameter before shrinkage 31.8 mm
max. operating temperature 135 °C
Shrinking rate 2:1
contains glue inside No
Shrinking temperature 95 °C
min. operating temperature -55 °C
Colour transparent
Wall thickness 1.02 mm
Logistics
Property Value
Country of origin IT
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
