5070114020 | Raychem

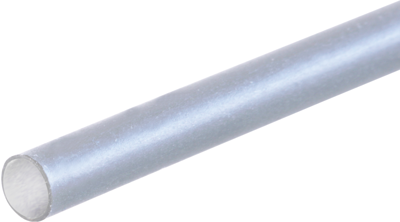

Heatshrink tubing, 2:1, (38.1/19.1 mm), PE, crosslinked, transparent, 5070114020
Unit Price (€ / mtr.)
8.0682 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
1 mtr.
8.0682 €
5 mtr.
7.6517 €
10 mtr.
7.1638 €
25 mtr.
6.5331 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, RNF-100-1-0-SP, Raychem
RNF-100-1-0-SP is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- 2:1 shrink ratio
- Flexible; conforms to irregular shapes
- Flame-retardant
- Wide range of sizes and colors
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter after shrinkage | 19.1 mm | |
| Inch Size | 1 1/2 | |
| Material | PE, crosslinked | |
| Inner diameter before shrinkage | 38.1 mm | |
| max. operating temperature | 135 °C | |
| Shrinking rate | 2:1 | |
| contains glue inside | No | |
| Shrinking temperature | 95 °C | |
| min. operating temperature | -55 °C | |
| Colour | transparent | |
| Wall thickness | 1.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
