5069822045 | Raychem

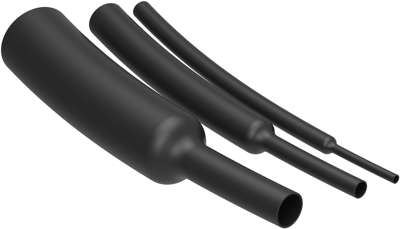

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, black, 5069822045
Unit Price (€ / mtr.)
1.5589 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 mtr.
1.5589 €
10 mtr.
1.4399 €
25 mtr.
1.3447 €
50 mtr.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, 5069822045, Raychem
The 5069822045 T is a tough, flexible, general purpose polyolefin tub with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including electrical insulation, strain relief, cable bundling, colorcoding and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection.
Features
- 2:1 and 3:1 shrink ratio
- Excellent physical and electrical performance
- Very good chemical and solvent resistance
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 3.2 mm | |
| max. operating temperature | 135 °C | |
| Length | 1.22 m | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 1.6 mm | |
| Material | PE | |
| Wall thickness | 0.5 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
