5053304016 | Raychem

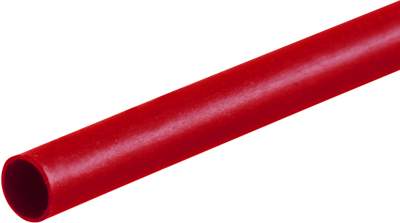

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, crosslinked, red, 5053304016
Unit Price (€ / mtr.)
6.6045 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
396.27 € *
Price list
Quantity
Price per unit*
60 mtr.
6.6045 €
120 mtr.
6.0690 €
300 mtr.
5.3550 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, QSZH-125-NR2-50MM, Raychem
QSZH-125-NR2-50MM is a zero halogen, dual wall heatshrinkable tubing designed to provide environmental sealing, mechanical and electrical protection of in-line splices in an automotive environment.
Features
- Excellent environmental sealing
- Quick installation
- Zero halogen
- Inspectable after installation
- Small cross-sectional profile
- RoHS/ELV compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 135 °C | |
| contains glue inside | No | |
| Wall thickness | 0.89 mm | |
| Colour | red | |
| Inner diameter after shrinkage | 12.7 mm | |
| Shrinking temperature | 95 °C | |
| Material | PE, crosslinked | |
| Shrinking rate | 2:1 | |
| Inch Size | 1 | |
| min. operating temperature | -55 °C | |
| Inner diameter before shrinkage | 25.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Reel with 60 meters |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
