5053034048 | Raychem

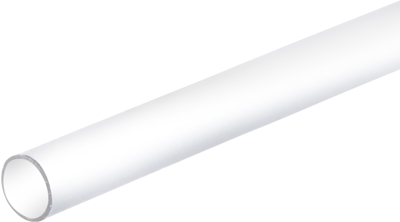

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, white, 5053034048
Unit Price (€ / mtr.)
1.3328 € *
Available: 290 mtr.
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 mtr.
1.3328 €
10 mtr.
1.2138 €
50 mtr.
1.1186 €
100 mtr.
1.0353 €
300 mtr.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, HTAT-12/3-0-SP, Raychem
HTAT-12/3-0-SP is a semiflexible, dual wall, moisture-resistant, heat-shrinkable tubing. This product is designed to provide environmental sealing for a range of substrates, at elevated temperatures.
Features
- 4:1 Shrink ratio
- Environmental sealing
- High-strength bonding
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE, crosslinked | |
| Inner diameter before shrinkage | 3.2 mm | |
| Inner diameter after shrinkage | 1.6 mm | |
| Wall thickness | 0.51 mm | |
| Colour | white | |
| max. operating temperature | 135 °C | |
| contains glue inside | No | |
| Shrinking temperature | 95 °C | |
| Shrinking rate | 2:1 | |
| min. operating temperature | -55 °C | |
| Inch Size | 1/8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 300 meters |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
