5053024016 | Raychem

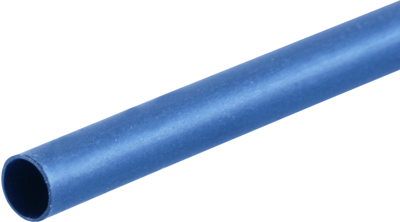

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, blue, 5053024016
Unit Price (€ / mtr.)
0.833 € *
Standard delivery time from the manufacturer is: 56 Weeks
Heat shrink tubing, HRSR-250FR-10, Raychem
HRSR-250FR-10 is a high-ratio (HR) heatshrinkable tubing, with expansion ratios as high as 5.6 to 1, is designed to accommodate large size differences between cables and cable connectors and backshells, thus simplifying repair of damaged cable.
Features
- 5.6:1 Shrink ratio
- Offers toughness and durability
- Provides excellent insulation and abrasion protection
- RoHS compliant
Technical specifications
| Colour | blue | |
| Shrinking temperature | 95 °C | |
| contains glue inside | No | |
| Inner diameter before shrinkage | 3.2 mm | |
| Wall thickness | 0.51 mm | |
| Inner diameter after shrinkage | 1.6 mm | |
| min. operating temperature | -55 °C | |
| Material | PE, crosslinked | |
| Inch Size | 1/8 | |
| max. operating temperature | 135 °C | |
| Shrinking rate | 2:1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
