5052964022 | Raychem

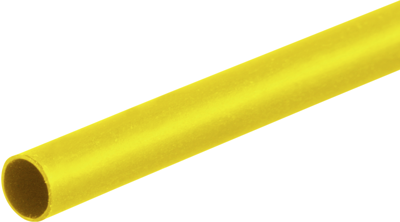

Heatshrink tubing, 2:1, (2.4/1.2 mm), PE, crosslinked, yellow, 5052964022

Order No.: 35P3100
EAN: 4099891273439
MPN:
5052964022
RNF-100-3/32-4-SP
Series: RNF-100
5052964022 Raychem Heat Shrink Tubing
Image may differ
Unit Price (€ / mtr.)
1.0115 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
303.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 mtr.
1.0115 €

Heat shrink tubing, HFT5000-50/25-0-SP, Raychem

HFT5000-50/25-0-SP is designed primarily to provide mechanical abrasion protection for components such as rubber hoses, plastic pipes, and harness wiring bundles. Also is suitable for other applications, such as noise and rattle suppression.

Features

  • 2:1 Shrink ratio
  • Highly flexible woven fabric tubing
  • Halogen free
  • RoHS compliant
Technical specifications
Filter Property Value
Inner diameter after shrinkage 1.2 mm
Inch Size 3/32
Material PE, crosslinked
Inner diameter before shrinkage 2.4 mm
max. operating temperature 135 °C
Shrinking rate 2:1
contains glue inside No
Shrinking temperature 95 °C
min. operating temperature -55 °C
Colour yellow
Wall thickness 0.51 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
