5052954017 | Raychem

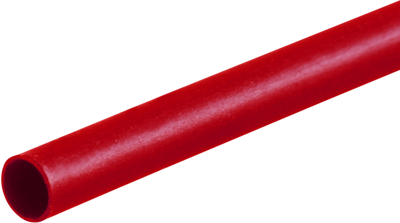

Heatshrink tubing, 2:1, (2.4/1.2 mm), PE, crosslinked, red, 5052954017
Unit Price (€ / mtr.)
1.6660 € *
Available in 5 Days: 300 mtr. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6660 €
10 mtr.
1.5470 €
25 mtr.
1.4518 €
50 mtr.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, HFT5000-30/15-0-SP, Raychem
HFT5000-30/15-0-SP is designed primarily to provide mechanical abrasion protection for components such as rubber hoses, plastic pipes, and harness wiring bundles. Also is suitable for other applications, such as noise and rattle suppression.
Features
- 2:1 Shrink ratio
- Highly flexible woven fabric tubing
- Halogen free
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 2.4 mm | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Colour | red | |
| Inner diameter after shrinkage | 1.2 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 0.51 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Inch Size | 3/32 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
