5052934055 | Raychem

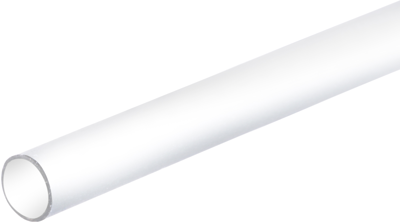

Heatshrink tubing, 2:1, (1.6/0.8 mm), PE, crosslinked, white, 5052934055
Unit Price (€ / mtr.)
1.0948 € *
Standard delivery time from the manufacturer is: 3 Weeks
Heat shrink tubing, HFT5000-25/12-0-SP, Raychem
HFT5000-25/12-0-SP is designed primarily to provide mechanical abrasion protection for components such as rubber hoses, plastic pipes, and harness wiring bundles. Also is suitable for other applications, such as noise and rattle suppression.
Features
- 2:1 Shrink ratio
- Highly flexible woven fabric tubing
- Halogen free
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 2:1 | |
| contains glue inside | No | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 135 °C | |
| Inner diameter after shrinkage | 0.8 mm | |
| Wall thickness | 0.43 mm | |
| Inner diameter before shrinkage | 1.6 mm | |
| Shrinking temperature | 95 °C | |
| Inch Size | 1/16 | |
| Colour | white | |
| Material | PE, crosslinked |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 600 meters |
| Customs tariff number | 39173200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
