4816334002 | Raychem

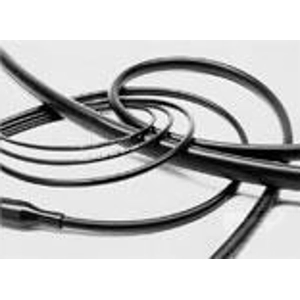

Heatshrink tubing, 2:1, (4.8/2.4 mm), elastomer, crosslinked, black, 4816334002
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
5.6287 € *
Standard delivery time from the manufacturer is: 3 Weeks
Heat shrink tubing, D-SCE-1K-12-50-4, Raychem
D-SCE-1K-12-50-4 E is the market leading fluid resistant heat shrinking wire marker. It is used in applications where exposure to organic fluids, especially oils, is required for long periods at elevated temperatures.
Features
- 3:1 Shrink ratio
- Diesel Resistant
- Provides the wire with strain relief
- Insulation and protection from mechanical abuse
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 2:1 | |
| Inner diameter before shrinkage | 4.8 mm | |
| Inner diameter after shrinkage | 2.4 mm | |
| min. operating temperature | -75 °C | |
| max. operating temperature | 150 °C | |
| contains glue inside | No | |
| Wall thickness | 0.51 mm | |
| Colour | black | |
| Material | elastomer, crosslinked | |
| Shrinking temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | US |
| Original Packaging | Reel with 150 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
