2544650001 | Raychem
Heatshrink tubing, 3:1, (4.75/1.57 mm), PE, blue, 2544650001
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

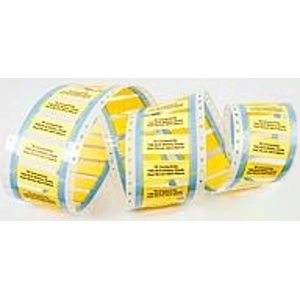

Heat-shrink identification sleeve, 2544650001, Raychem
The 2544650001 is a thin wall, light weight, fast recovery 3:1 shrink ratio sleeve, allowing the customer to cover a wide range of cable diameters. Suitable for a wide variety of applications, including aerospace, military, industrial and energy. This product is made from durable, flame retarded, radiation cross linked heat shrinkable polyolefin. Supplied in ‘ladder format’, sleeves are presented for ease of printing and kitting.
Features
- Self-extinguishing, non-flame propagating
- Can be laser marked for superior performance
- Military grade performance
- Pre-termination Cable Identification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter before shrinkage | 4.75 mm | |
| Wall thickness | 0.58 mm | |
| Length | 12.7 mm | |
| Colour | blue | |
| Material | PE | |
| max. operating temperature | 135 °C | |
| Inch Size | 3/16 | |
| Shrinking rate | 3:1 | |
| min. operating temperature | -55 °C | |
| Inner diameter after shrinkage | 1.57 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173900 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
