2290750001 | Raychem
Heatshrink tubing, 3:1, (25.4/8.4 mm), yellow, 2290750001
Order No.: 39P9271
EAN: 4099891277161
MPN:
2290750001

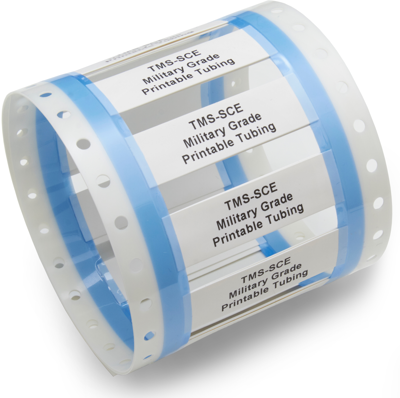

TMS-SCE-1K-1-2.0-4
Unit Price (€ / mtr.)
4.0103 € *
Standard delivery time from the manufacturer is: 30 Weeks
Heat shrink tubing, CGPT-18/6-0-SP, Raychem
CGPT-18/6-0-SP is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including electrical insulation, strain relief, cable bundling, colorcoding and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection.
Features
- 2:1 and 3:1 Shrink ratio
- Very good chemical and solvent resistance
- Flexible
- Excellent physical and electrical performance
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Colour | yellow | |
| Inner diameter before shrinkage | 25.4 mm | |
| Shrinking rate | 3:1 | |
| Length | 50 mm | |
| Inner diameter after shrinkage | 8.4 mm | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
