1074372007 | Raychem

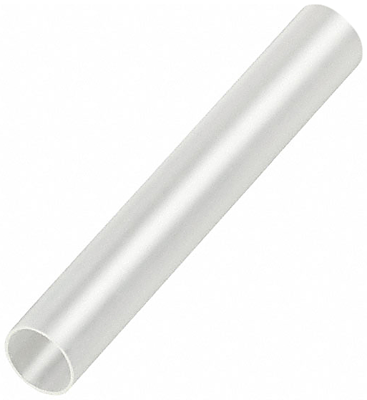

Heatshrink tubing, 4:1, (8/2 mm), PE, crosslinked, transparent, 1074372007
Unit Price (€ / pc.)
5.0099 € *
Available: 89 pcs.
Available in 5 Days: 75 pcs. - if ordered today
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.6529 €
25 pcs.
4.3435 €
50 pcs.
3.9508 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat shrink tubing, ATUM-24/8-X-STK, Raychem
ATUM-24/8-X-STK is a high-shrink-ratio, adhesive-lined polyolefin tubing. This product also seals and protects a wide variety of electrical applications, including back end connector sealing, breakouts, and connector-to-cable transitions.
Features
- 3:1 and 4:1 Shrink ratio
- Tubing environmentally seals and protects components and interconnections
- Medium wall provides increased mechanical protection
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 8 mm | |
| max. operating temperature | 75 °C | |
| Length | 1.2 m | |
| min. operating temperature | -55 °C | |
| Colour | transparent | |
| Inner diameter after shrinkage | 2 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 0.89 mm | |
| Shrinking rate | 4:1 | |
| Shrinking temperature | 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
