EC7629-000 | Raychem

PE cable maker, imprint "0", (L x H) 45 x 10.4 mm, white, EC7629-000

Order No.: 38P8995
EAN: 4099891232818
MPN:
EC7629-000
HLX104WE1TS025B
EC7629-000 Raychem Cable Markers
Image may differ
Unit Price (€ / pc.)
1.071 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
2,142.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.071 €

HL cable marker, EC7629-000, RAYCHEM

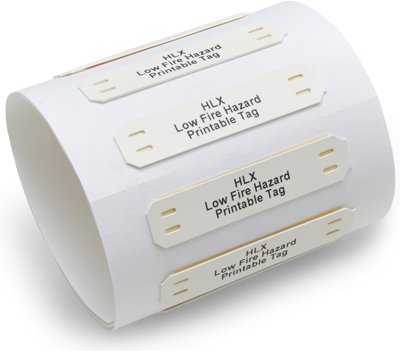

HLX cable markers is a flat, non-adhesive label that can be used to identify large cables and wire bundles in particularly aggressive environments. Presented as organised markers assembled onto a reel. The cable marker can be applied post cable termination using cable ties. Manufactured using a specially developed radiation cross-linked polymer. Formulated to give Low Fire Hazard properties, which allow this product to be used in locations where fire may pose a risk to human life, and property. Typical installations include underground railways and mass transit. This cable marker is a white variant, printed using thermal transfer technology.

Features

  • Zero halogen
  • Low toxic fumes
  • Low smoke
  • Self-extinguishing
  • Resistant to key industrial and rail fluids
  • Excellent resistance to burning - typical LOI 39%

Applications

  • Post termination cable identification
  • Installation friendly - easy to replace, ideal for retrofitting and repairs
Technical specifications
Colour white
Imprint 0
Markable No
Height 10.4 mm
Length 45 mm
Version cable maker
Material PE
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
