EC7589-000 | Raychem
PE cable maker, imprint "0", (L x H) 52 x 20.3 mm, white, EC7589-000
Order No.: 38P8994
EAN: 4099891232801
MPN:
EC7589-000
HL203WE1TS033B
Unit Price (€ / pc.)
2.2729 € *
Standard delivery time from the manufacturer is: 35 Weeks

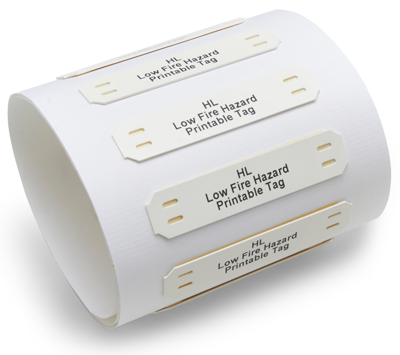

HL cable marker, EC7589-000, RAYCHEM
HL cable marker is a flat, non-adhesive label that can be used to identify large cables and wire bundles in particularly aggressive environments. The cable marker is a white variant and can be applied post cable termination using cable ties.
Features
- Highly flame resistant - excellent resistance to burning
- Resistant to key industrial and military grade fluids
- Available in several height/width combinations, and non-standard color options
Applications
- Post termination cable identification
- Installation friendly - easy to replace, ideal for retrofitting and repairs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 20.3 mm | |
| Length | 52 mm | |
| Material | PE | |
| Colour | white | |
| Version | cable maker | |
| Imprint | 0 | |
| Markable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
