EC6455-000 | Raychem
PVC cable maker, imprint "1", (W) 6 mm, max. bundle Ø 7 mm, yellow, EC6455-000
Order No.: 38P1855
EAN: 4099891226107
MPN:
EC6455-000
13611401
Unit Price (€ / pc.)
0.0298 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
208.25 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.0298 €
10000 pcs.
0.0262 €
*incl. VAT plus shipping costs
Subject to prior sale

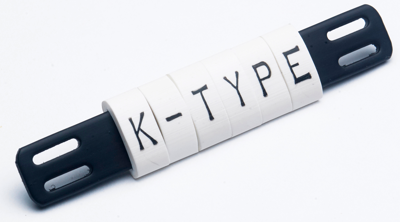

K-type marker, EC6455-000, RAYCHEM
K-type marker is used to identify wire bundles, cables, pipes and conduits. The oval shaped profile has been designed to allow the marker to be accurately positioned onto a carrier strip. The marker and carrier strip assembly is attached to the substrate using cable ties. The K-type marker is ideal for post termination applications or where retrofitting is required.
This variant of the K-type marker is yellow. The K-type marker comes in one standard size to fit carrier strips that can hold from 7 to 18 markers and are made from a plasticized PVC material. Suitable for industrial applications.
Features
- Self-extinguishing
- Resistant to key industrial fluids, including those used in mass transit, aviation and military
Applications
- Post termination cable identification
- Installation friendly - easy to replace, ideal for retrofitting and repairs
- Electric and electronic equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 7 mm | |
| Material | PVC | |
| Markable | No | |
| Imprint | 1 | |
| Colour | yellow | |
| Version | cable maker | |
| Width | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
