EC5862-000 | Raychem
PVC cable maker, imprint "V", (L) 4.5 mm, max. bundle Ø 6.3 mm, white, EC5862-000
Order No.: 38P1619
EAN: 4099891224592
MPN:
EC5862-000
11561931
This item is no longer available.
As an alternative, we recommend the following item:
PVF cable maker, imprint "V", (L x W x H) 4.75 x 4.5 x 6.3 mm, max. bundle Ø 6.3 mm, white, EC1068-000
Order No.: 37P9307
Manufacturer: Raychem
per pc. 0.0214 € *

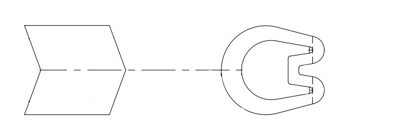

Z-type marker, EC5862-000, RAYCHEM
Z-type marker is an individual push-on marker used to identify wires and small cables permanently. The marker is manufactured using PVC and designed with an expanding profile, enabling each marker to accommodate a wide range of wire/cable sizes. Z-type marker is a simple, cost-effective solution for many commercial wire identification applications. The marker is a white, chevron cut variant.
Features
- Self-extinguishing
- Resistant to key Industrial fluids, including those used in mass transit, aviation and military
- Nine sizes covering wire diameters from 1.5 mm to 12.7 mm
Applications
- Pre-termination cable identification
- Applicator wands available for easy marker installation
- Electrical and electronic equipment
Technical specifications
| Colour | white | |
| Imprint | V | |
| max. Bundle diameter | 6.3 mm | |
| Markable | No | |
| Length | 4.5 mm | |
| Version | cable maker | |
| Material | PVC |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
