5-1768045-0 | Raychem

POM cable maker, imprint "W", (L) 3.5 mm, max. bundle Ø 6 mm, yellow, 5-1768045-0

Order No.: 38P2461
EAN: 4099891230920
MPN:
5-1768045-0
STD12Y-W
Series: STD

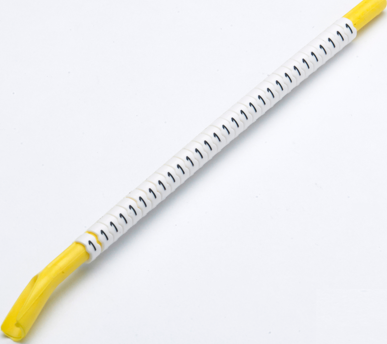

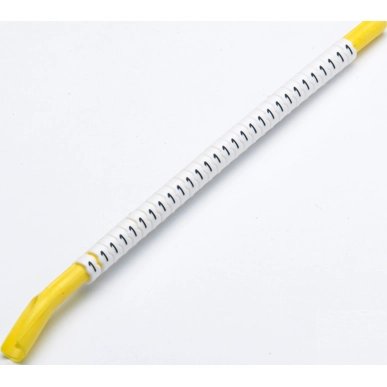

5-1768045-0 Raychem Cable Markers Image 1

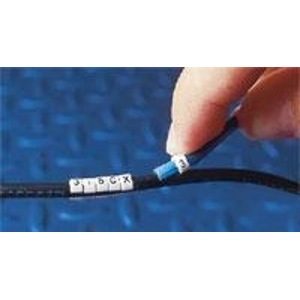

5-1768045-0 Raychem Cable Markers Image 2

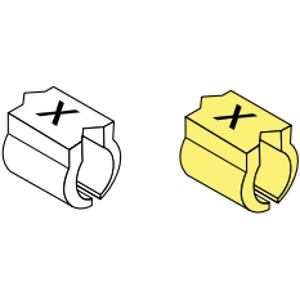

5-1768045-0 Raychem Cable Markers Image 3
Image may differ
Unit Price (€ / pck.)
5.2122 € *
Available in 5 Days: 80 pck. - if ordered today
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pck.
5.2122 €
10 pck.
4.8195 €
25 pck.
4.4625 €
50 pck.
4.0341 €
*incl. VAT plus shipping costs
Subject to prior sale

STD marker, 5-1768045-0, RAYCHEM

STD marker is an individual snap on marker used to identify wires and small cables permanently. The marker is side-entry installed using an applicator wand, so allowing identification after termination and/or installation. This marker has an expanding profile which enable markers to accommodate a wide range of wire and small cable sizes. This marker is a yellow, chevron cut variant, to ensure the legend remains aligned.

Manufactured using a zero halogen polyoxymethylene (POM) compound, this marker lends itself to installations where a permanent solution is required. Ideally suited for use in energy projects including power stations, oil refineries and offshore platforms.

Features

  • Secure grip for positive fixing to cable
  • Applicator has a patented slit to prevent over-expansion of the marker during application
  • The high elasticity of the marker enables material to be installed without damaging the substrate
  • Ten sizes for cable diameters 1.0 to 19.0 mm
  • Excellent resistance to burning - UL94 HB rated

Applications

  • Identification of small wires and cables, including optical fibres
Technical specifications
Filter Property Value
max. Bundle diameter 6 mm
Font color black
Material POM
Length 3.5 mm
Markable No
Imprint W
Colour yellow
Version cable maker
Logistics
Property Value
Original Packaging Bar with 30 pieces
Customs tariff number 39269097
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
