2-1768042-0 | Raychem

PP cable maker, inscribable, (L x W x H) 3.1 x 2.4 x 2.9 mm, max. bundle Ø 2.65 mm, white, 2-1768042-0

Order No.: 14L3392
EAN: 4099891207502
MPN:
2-1768042-0
STD03W-BLANK
Series: STD
2-1768042-0 Raychem Cable Markers Image 1
2-1768042-0 Raychem Cable Markers Image 2
2-1768042-0 Raychem Cable Markers Image 3
Image may differ
Unit Price (€ / pck.)
1.6422 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pck.
1.6422 €
10 pck.
1.4994 €
25 pck.
1.3923 €
50 pck.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale

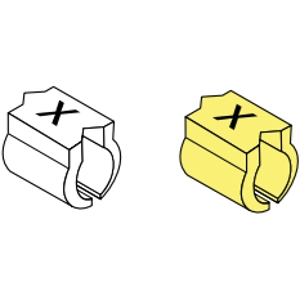

Cable tags, type STD.

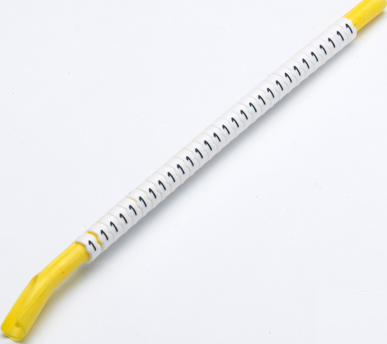

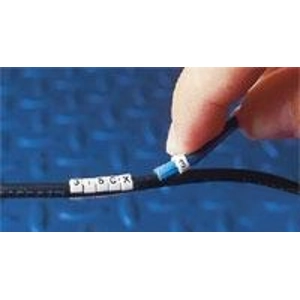

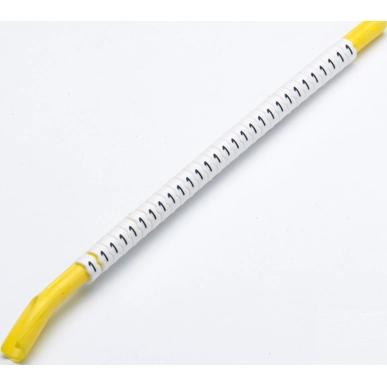

Supplied in units of 30 items on a dispenser rod which is used for sliding the tag onto wires or cables. The molded black legend is highly enduring; Background color of the tag: white.

For cables from 1.9 to 2.65 mm, on green dispenser rod, type STD 03.

Technical attributes (type, legend): STD 03, without legend

Technical specifications
Filter Property Value
Height 2.9 mm
Length 3.1 mm
Material PP
Colour white
Version cable maker
Width 2.4 mm
max. Bundle diameter 2.65 mm
Font color black
Markable Yes
Logistics
Property Value
Country of origin DE
Original Packaging Bar with 30 pieces
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
