1768048-2 | Raychem

Cable maker, imprint "0", (L x W x H) 8 x 10 x 17.6 mm, max. bundle Ø 19 mm, yellow, 1768048-2

Order No.: 38P2638
EAN: 4099891232610
MPN:
1768048-2
STD24Y-0
Series: STD

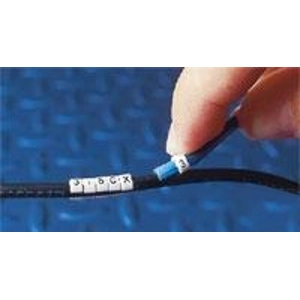

1768048-2 Raychem Cable Markers Image 1

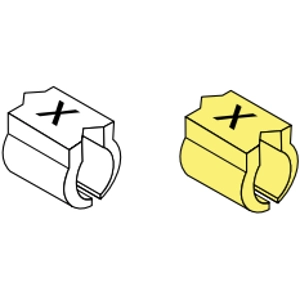

1768048-2 Raychem Cable Markers Image 2
Image may differ
Unit Price (€ / pck.)
32.725 € *
Available in 5 Days: 12 pck. - if ordered today
Total Price:
32.73 € *
Price list
Quantity
Price per unit*
1 pck.
32.725 €
10 pck.
30.345 €
25 pck.
27.965 €
50 pck.
25.585 €
*incl. VAT plus shipping costs
Subject to prior sale

STD marker, 1768048-2, RAYCHEM

STD marker is an individual snap on marker used to identify wires and small cables permanently. The marker is side-entry installed using an applicator wand, so allowing identification after termination and/or installation. This marker has an expanding profile which enable markers to accommodate a wide range of wire and small cable sizes. This marker is a yellow, chevron cut variant, to ensure the legend remains aligned.

Manufactured using a zero halogen polyoxymethylene (POM) compound, this marker lends itself to installations where a permanent solution is required. Ideally suited for use in energy projects including power stations, oil refineries and offshore platforms.

Features

  • Secure grip for positive fixing to cable
  • Applicator has a patented slit to prevent over-expansion of the marker during application
  • The high elasticity of the marker enables material to be installed without damaging the substrate
  • Ten sizes for cable diameters 1.0 to 19.0 mm
  • Excellent resistance to burning - UL94 HB rated

Applications

  • Identification of small wires and cables, including optical fibres
Technical specifications
Filter Property Value
Version cable maker
Height 17.6 mm
Imprint 0
Markable No
max. Bundle diameter 19 mm
Colour yellow
Font color black
Length 8 mm
Width 10 mm
Logistics
Property Value
Customs tariff number 39269097
Country of origin JP
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
