CJ8290-000 | Raychem

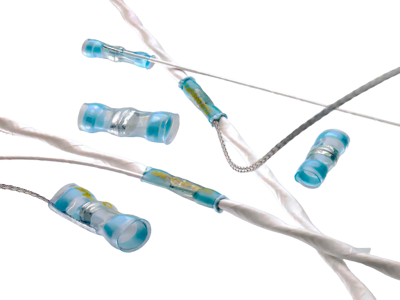

Butt connector with heat shrink insulation, 0.38 mm², AWG 22, transparent blue, 16.5 mm, CJ8290-000
Order No.: 34P3692
EAN: 4099889607482
MPN:
CJ8290-000
S200-1-W2-22-9
Unit Price (€ / pc.)
4.5696 € *
Standard delivery time from the manufacturer is: 32 Weeks

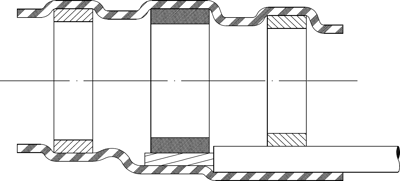

SolderSleeve Shield Terminator, CJ8290 - 000, Raychem
Pre - Installed Lead: Yes, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 1.9 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 0.9 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 200 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 150 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.38 mm² | |
| AWG cross-section | AWG 22 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | fluoropolymer | |
| shrinkable tubing | Yes | |
| Length | 16.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
