CA3119-000 | Raychem

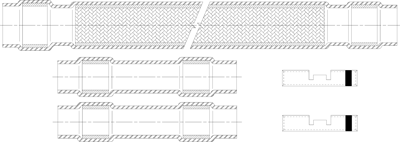

Butt connector kit with heat shrink insulation, 0.34 mm², AWG 22, transparent blue, 108 mm, CA3119-000
Order No.: 34P2257
EAN: 4099889604788
MPN:
CA3119-000
D-150-0330
Unit Price (€ / pc.)
52.479 € *
Standard delivery time from the manufacturer is: 21 Weeks
Splices, CA3119 - 000, Raychem
Splice Product Type: SolderShield Splice Kit, Sealable: Yes, Splice Type: In - Line Splice, Splice Wire/Cable Type: Multi - Conductor, Insulated: Yes, Number of Conductors: Two - conductor cable, Plating Material: Tin/Silver, Splice Material: Tin - Plated Copper, Splice Color: Blue, Terminal & Splice Type: Splice, Wire Size: 22 AWG, Wire Size: 0.34 mm², Wire Size: 779 - 2680 CMA, Splice Overall Length: 108 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: - 55 - 150 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector kit | |
| Cable cross-section | 0.34 mm² | |
| AWG cross-section | AWG 22 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 108 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
