C60253-000 | Raychem

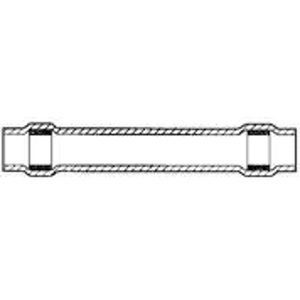

Butt connector with heat shrink insulation, 0.95-3.37 mm², AWG 16 to 12, transparent yellow, 29.21 mm, C60253-000

Order No.: 07F6989
EAN: 4099889604108
MPN:
C60253-000
D-200-84
Series: MiniSeal
C60253-000 Raychem Butt splices
Image may differ
Unit Price (€ / pc.)
25.5136 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
204.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
8 pcs.
25.5136 €

Splices, C60253 - 000, Raychem

Splice Product Type: Splice, Sealable: Yes, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Splice Configuration: Single to Single, Number of Serrations: 0. Weight per Piece: 0.16 g, Splice Features: Splice Kit, Splice Material: Nickel - Plated, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Size: 16 - 12 AWG, Wire Size: 0.95 - 3.37 mm², Barrel Inside Diameter: 2.54 mm, Wire Size: 2426 - 5874 CMA, Splice Overall Length: 29.21 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: - 55 - 200 °C, Heavy Duty: No, Government Qualified Splice: Yes, Packaging Quantity: 100, Splice Packaging Method: Bag/Box, Comment: Parts will meet all performance requirements of SAE AS - 81824 when properly installed.

Technical specifications
Version butt connector
Cable cross-section 0.95-3.37 mm²
AWG cross-section AWG 16 to 12
Isolated Yes
Colour transparent yellow
Material fluoropolymer
shrinkable tubing Yes
Length 29.21 mm
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
