967398-000 | Raychem

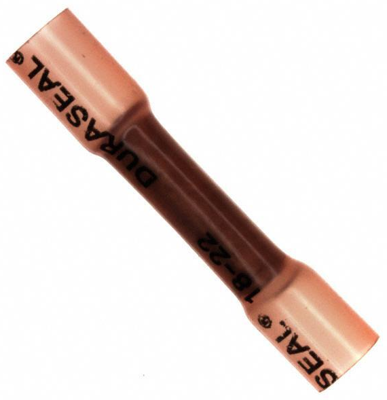

Butt connector with heat shrink insulation, 0.5-1.0 mm², AWG 22 to 18, red, 31.5 mm, 967398-000
Unit Price (€ / pc.)
0.8092 € *
Available: 199 pcs.
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8092 €
10 pcs.
0.7497 €
25 pcs.
0.7021 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, Splice, 967398 - 000, Raychem
DuraSeal Crimp Splice, Butt Splice, In - Line Splice, Copper, Tin, 0.5 - 1 mm²
Technical Data
- Version: Butt connector
- Material: Nylon
- Length: 31 mm
- Insulated: Yes
- Barrel Color: Red
- Plating Material: Tin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.5-1.0 mm² | |
| AWG cross-section | AWG 22 to 18 | |
| Isolated | Yes | |
| Colour | red | |
| Material | PA | |
| shrinkable tubing | Yes | |
| Length | 31.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
