696760-000 | Raychem

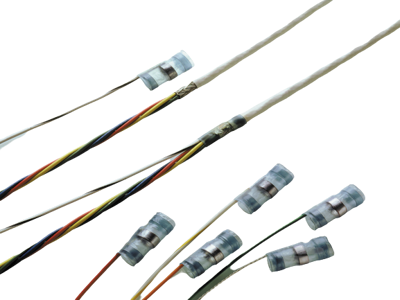

Butt connector with heat shrink insulation, 0.5 mm², AWG 20, transparent blue, 20.8 mm, 696760-000
Order No.: 34P3632
EAN: 4099889607055
MPN:
696760-000
B-900-22
Unit Price (€ / pc.)
6.5569 € *
Standard delivery time from the manufacturer is: 35 Weeks
Splices, 696760 - 000, Raychem
Splice Product Type: SolderSleeve, Sealable: No, Splice Type: Shield Terminator, Insulated: Yes, Terminal & Splice Type: Splice, Wire Size: 20 AWG, Wire Size: 0.5 mm², Splice Wire Insulation Diameter (Max): 6.9 mm, Splice Overall Length: 20.8 mm, Operating Temperature Range: - 55 - 150 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.5 mm² | |
| AWG cross-section | AWG 20 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 20.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
