696192-000 | Raychem

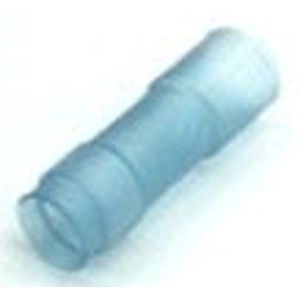

Butt connector with heat shrink insulation, 0.25-2.5 mm², AWG 22 to 14, transparent blue, 15 mm, 696192-000
Order No.: 34P2271
EAN: 4099889604870
MPN:
696192-000
B-006-04
Unit Price (€ / pc.)
2.9512 € *
Available in 5 Days: 2,500 pcs. - if ordered today
Splice, 696192 - 000, TE Connectivity
Splice Product Type: Sealing Sleeve, Sealable: Yes, Splice Type: Stub Splice, Splice Wire/Cable Type: Insulated Wire, Insulated: Yes, Terminal & Splice Type: Splice, Wire Size: 14 - 24 AWG, Wire Size: 2.5 - 0.25 mm², Splice Overall Length: 15 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.25-2.5 mm² | |
| AWG cross-section | AWG 22 to 14 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
