695054-000 | Raychem

Butt connector with heat shrink insulation, 0.2-0.6 mm², AWG 20 to 16, transparent red, 29.3 mm, 695054-000

Order No.: 07F7054
EAN: 4099889604290
MPN:
695054-000
W-095-01
Series: MiniSeal

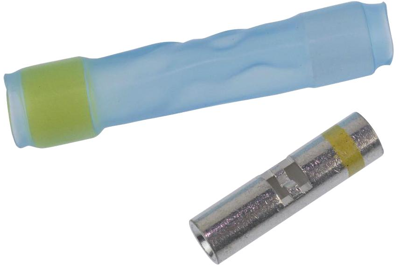

695054-000 Raychem Butt splices
Image may differ
Unit Price (€ / pc.)
8.8298 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
6,180.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
700 pcs.
8.8298 €

Splice, 695054 - 000, TE Connectivity

Splice Product Type: Crimp Splice, Sealable: Yes, Splice Type: Inline Crimp Splice Sealing System, Insulated: Yes, Insulation Material: Polyvinylidene, Splice Material: Copper Alloy,Nickel - Plated, Splice Color: Red, Terminal & Splice Type: Splice, Wire Size: 16 - 20 AWG, Wire Size: 0.6 - 0.2 mm², Wire Size: 410 - 1230 CMA, Operating Temperature Range: 150 °C, Government Qualified Splice: No

Technical specifications
Version butt connector
Cable cross-section 0.2-0.6 mm²
AWG cross-section AWG 20 to 16
Isolated Yes
Colour transparent red
Material PVDF
shrinkable tubing Yes
Length 29.3 mm
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
