680329-000 | Raychem

Butt connectorwith insulation, 0.15 -0.61 mm², AWG 26 to 20, transparent red, 12.95 mm, 680329-000

Order No.: 07F7050
EAN: 4099889604252
MPN:
680329-000
D-609-09
Series: MiniSeal

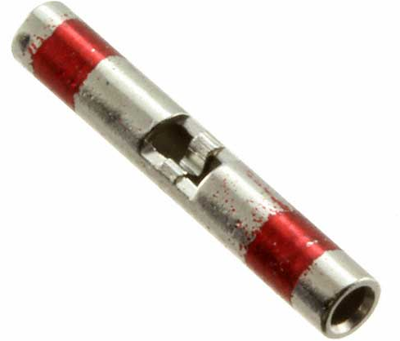

680329-000 Raychem Butt splices
Image may differ
Unit Price (€ / pc.)
3.3915 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
8,478.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
3.3915 €

Splice, 680329 - 000, TE Connectivity

Splice Product Type: Splice, Splice Type: In - Line Splice, Serrated: No, Splice Accessory Type: Splice, Splice Barrel Type: Closed Barrel, Number of Serrations: 0. Splice Material: Nickel - Plated, Terminal & Splice Type: Splice, Wire Size: 26 - 20 AWG, Wire Size: 0.15 - 0.61 mm², Barrel Inside Diameter: 1.2 mm, Wire Size: 304 - 1216 CMA, Splice Overall Length: 120.95 mm, Operating Temperature Range: - 65 - 175 °C, Heavy Duty: No, Government Qualified Splice: No, Splice Packaging Method: Bag/Box

Technical specifications
Version butt connector
Cable cross-section 0.15 -0.61 mm²
AWG cross-section AWG 26 to 20
Isolated Yes
Colour transparent red
Material copper alloy
shrinkable tubing No
Length 12.95 mm
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
