656537-000 | Raychem

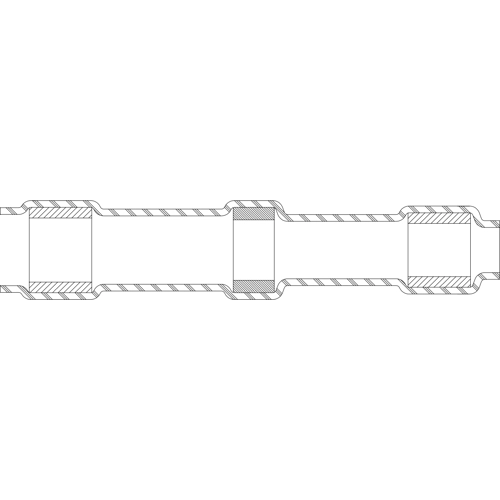

Butt connector with heat shrink insulation, 0.5 mm², AWG 20, transparent blue, 19.1 mm, 656537-000
Order No.: 07F6983
EAN: 4099889604061
MPN:
656537-000
S02-04-R
Unit Price (€ / pc.)
3.8675 € *
Available in 5 Days: 1,627 pcs. - if ordered today
SolderSleeve Shield Terminator, 656537 - 000, Raychem
Temperature Indicator: Yes, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre - Installed Lead: No, Jacket Outside Diameter: 50.95 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 6.45 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 1.8 mm, Wire Size: 0.5 mm², Wire Size: 20 AWG, Resistance Properties: Immersion Protection, Government Qualified: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.5 mm² | |
| AWG cross-section | AWG 20 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 19.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | No |
