620143-000 | Raychem

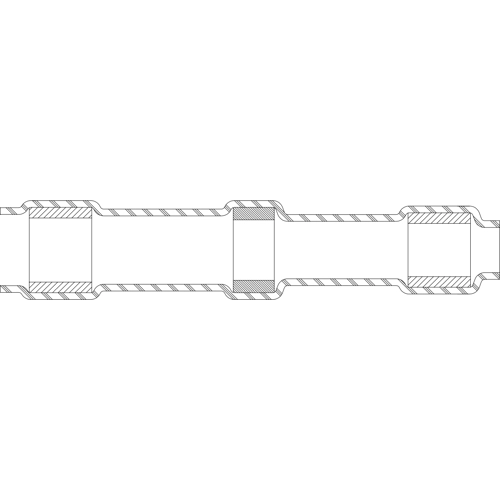

Butt connector with heat shrink insulation, transparent blue, 17.25 mm, 620143-000
Order No.: 34P3638
EAN: 4099889607109
MPN:
620143-000
D-101-31
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8679 € *
Available in 5 Days: 678 pcs. - if ordered today
SolderSleeve Shield Terminator, 620143-000, Raychem
Pre-Installed Lead: No, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 4.55 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 2.5 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Wire Temperature (Max): 125 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 17.25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
