593774-000 | Raychem
Butt connector with heat shrink insulation, 0.09 mm², AWG 26, transparent blue, 19.1 mm, 593774-000
Order No.: 07F6984
EAN: 4099889604078
MPN:
593774-000
S02-20-R90
Unit Price (€ / pc.)
4.4625 € *
Standard delivery time from the manufacturer is: 30 Weeks

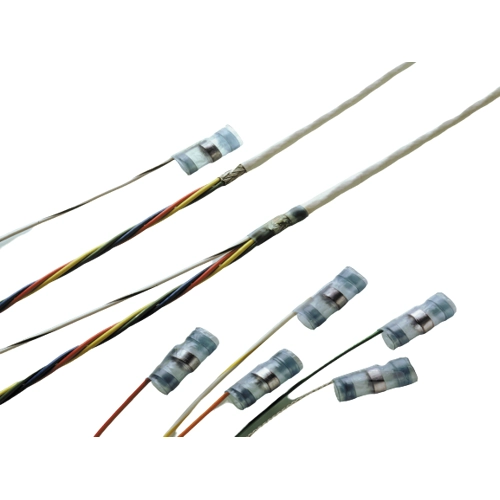

SolderSleeve Shield Terminator, 593774-000, TE Connectivity
Temperature Indicator: Yes, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: 55A0111, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 7 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 4.3 mm, Resistance Properties: Immersion Protection, Wire Temperature (Max): 105 °C, Government Qualified: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.09 mm² | |
| AWG cross-section | AWG 26 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 19.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
