521076-000 | Raychem
Butt connector with heat shrink insulation, 0.61 mm², AWG 20, transparent blue, 17 mm, 521076-000
Order No.: 34P3824
EAN: 4099889608502
MPN:
521076-000
D-181-1220-90/9
Unit Price (€ / pc.)
17.9214 € *
Standard delivery time from the manufacturer is: 46 Weeks
Total Price:
17.92 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9214 €
10 pcs.
16.6362 €
25 pcs.
15.5295 €
50 pcs.
14.1134 €
*incl. VAT plus shipping costs
Subject to prior sale

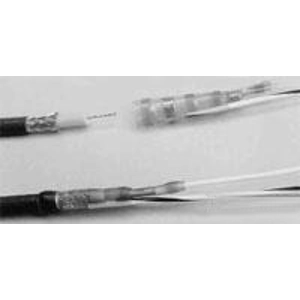

Coax Cable Termination, 521076 - 000, Raychem
Temperature Indicator: No, Coax Cable Termination Product Type: Coax Terminator, Coax Cable Termination Applies To: Coaxial Cable, Splice Type: SolderSleeve, Pre - Installed Lead Type: 55A0111, Lead Stranding: Stranded, Cable Shield Material: Silver,Tin, Shield Outside Diameter (Max): 3.2 mm, Termination Method: Solder, Pre - Installed Lead Wire Size: 0.61 mm², Jacket Outside Diameter: 1.5 - 3.6 mm, Coax Cable Termination Conductor Outside Diameter: 0.25 - 0.7 mm, Dielectric Outside Diameter: 2.4 mm, Overall Length: 17 mm,21.5 mm, Resistance Properties: Immersion Protection, Coax Cable Termination Operating Temperature (Max): 150 °C, MIL/NAS Specification (MIL - S - 83519, NAS - 1747): No, Government Qualified: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.61 mm² | |
| AWG cross-section | AWG 20 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
