419293-000 | Raychem

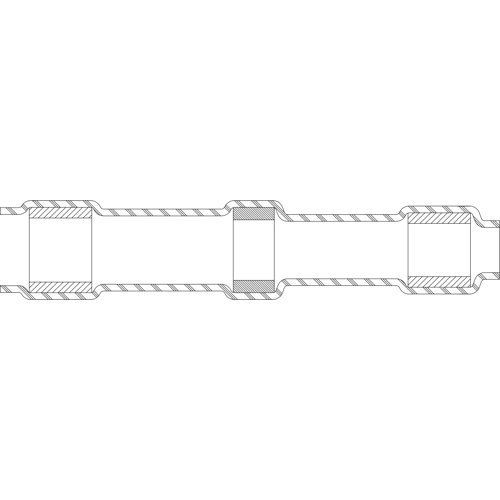

Butt connector with heat shrink insulation, 0.38 mm², AWG 22, transparent blue, 19.1 mm, 419293-000
Order No.: 34P3469
EAN: 4099889605693
MPN:
419293-000
SO63-4-55-22-5
Unit Price (€ / pc.)
5.5454 € *
Standard delivery time from the manufacturer is: 44 Weeks
SolderSleeve Shield Terminator, 419293-000, Raychem
Temperature Indicator: Yes, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre-Installed Lead Type: 55A0111, Pre-Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 50.95 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 50.95 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 1.8 mm, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Resistance Properties: Immersion Protection, Wire Temperature (Max): 125 °C, MIL/NAS Specification (MIL-S-83519, NAS-1747): No
Technical specifications
| Version | butt connector | |
| Cable cross-section | 0.38 mm² | |
| AWG cross-section | AWG 22 | |
| Isolated | Yes | |
| Colour | transparent blue | |
| Material | PVDF | |
| shrinkable tubing | Yes | |
| Length | 19.1 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
