2908663002 | Raychem

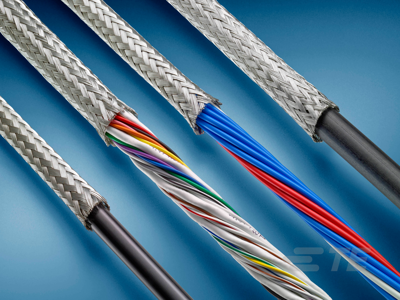

Metal braided sleeve, inner Ø 15 mm, range 13-18 mm, -65 to 150 °C, 2908663002
Unit Price (€ / mtr.)
38.6869 € *
Standard delivery time from the manufacturer is: 20 Weeks
Heat-shrinkable Tubing, VERSAFLEX-1-1/4-0-SP, Raychem
VERSAFLEX-1-1/4-0-SP is suited for the mechanical protection of wire harnesses, hoses, and all other applications where exceptional flexibility combined with superior abrasion/cut resistance is required.
Features
- Excellent abrasion and cutthrough resistance
- Lightweight
- Fungus proof
- Not affected by most chemical and solvents, non-hygroscopic
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Optical Coverage | 90 % | |
| Application range | 13-18 mm | |
| max. operating temperature | 150 °C | |
| Halogen free | No | |
| min. operating temperature | -65 °C | |
| Material | copper, tin-plated | |
| Version | metal braided sleeve | |
| Inner diameter | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
