878500-000 | Raychem

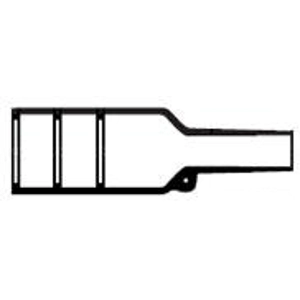

Beaded heat shrink sleeve, straight, S1 (66/44.5 mm), S2 (66/16.8 mm), 878500-000
Order No.: 34P4239
EAN: 4099891280796
MPN:
878500-000
202K185-25-0
Unit Price (€ / pc.)
83.3357 € *
Available in 5 Days: 64 pcs. - if ordered today
Heat shrink boot, 878500-000, Raychem
This heat shrink boot is designed to be used in conjunction with other System 25 components such as DR-25 tubing and S1125 adhesive, providing a complete cable harness system capability. This product has been specifically formulated and designed to provide optimum high-temperature fluid resistance and long-term heat resistance. This unique balance of properties makes it particularly suitable for sealing and strain relief at connector-cable terminations and cable-to-cable transitions on military vehicle cables and harnesses.
Features
- Heat-shrinkable, semi-rigid, chemical- and abrasion resistant molded shapes
- Excellent resistance to high temperature fluids
- Resistance to long-term exposure at elevated temperatures
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Number of outputs | 2 | |
| contains glue inside | No | |
| Inner diameter side 1 (before shrinkage) | 66 mm | |
| Inner diameter before shrinkage 2 | 66 mm | |
| Inner diameter side 1 (after shrinkage) | 44.5 mm | |
| Inner diameter after shrinkage 2 | 16.8 mm | |
| min. operating temperature | -75 °C | |
| max. operating temperature | 150 °C | |
| Wall thickness | 3.8 mm | |
| Length | 170 mm | |
| Flammable | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
