811933-000 | Raychem
Beaded heat shrink sleeve, straight, S1 (30.99/15.01 mm), S2 (18.03/7.1 mm), 811933-000
Order No.: 34P4703
EAN: 4099891281656
MPN:
811933-000
202K142-12-0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
108.7779 € *
Available in 5 Days: 82 pcs. - if ordered today

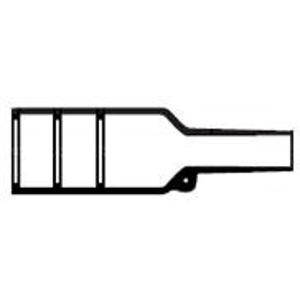

Heat shrink boot, 811933-000, Raychem
This heat shrink boot is designed to be used in conjunction with tubing made from fluoroelastomers or multi-conductor cable jackets and a suitable adhesive in System 200. This system provides excellent resistance to elevated temperatures and continuous fuel immersion.
Features
- Heat-shrinkable, flexible, fluid-resistant modified fluoro-elastomer
- Excellent resistance to longterm fuel immersion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| contains glue inside | No | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 200 °C | |
| Wall thickness | 1.8 mm | |
| Flammable | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
