511608-000 | Raychem
Heat shrink cable transition, 2:1, Y-shape, S1 (38.6/27 mm), S2 (18/12.4 mm), 511608-000
Order No.: 34P5303
EAN: 4099891282523
MPN:
511608-000
382A034-25/225-0
Unit Price (€ / pc.)
132.8992 € *
Available in 5 Days: 89 pcs. - if ordered today

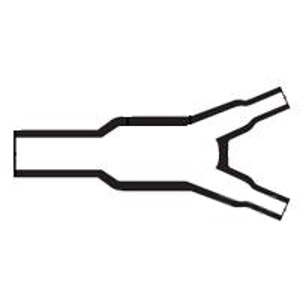

Heat shrink boot, 511608-000, Raychem
This heat shrink boot is designed to be used in conjunction with other System 25 components such as DR-25 tubing and S1125 adhesive, providing a complete cable harness system capability. This product has been specifically formulated and designed to provide optimum high-temperature fluid resistance and long-term heat resistance. This unique balance of properties makes it particularly suitable for sealing and strain relief at connector-cable terminations and cable-to-cable transitions on military vehicle cables and harnesses.
Features
- Heat-shrinkable, semi-rigid, chemical- and abrasion resistant molded shapes
- Excellent resistance to high temperature fluids
- Resistance to long-term exposure at elevated temperatures
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 3.05 mm | |
| min. operating temperature | -75 °C | |
| max. operating temperature | 150 °C | |
| Version | Y-shape | |
| Colour | black | |
| Flammable | Yes | |
| contains glue inside | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
