346501-000 | Raychem

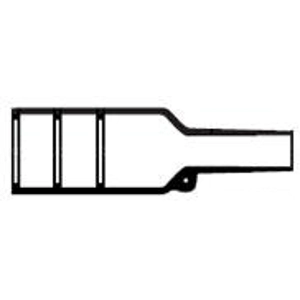

Beaded heat shrink sleeve, straight, S1 (29.97/29.97 mm), S2 (14.2/5.89 mm), 346501-000

Order No.: 34P3976
EAN: 4099891280116
MPN:
346501-000
202K132-100-01/86-0
346501-000 Raychem Bottle Shapes
Image may differ
Unit Price (€ / pc.)
39.2343 € *
Available in 5 Days: 140 pcs. - if ordered today
Total Price:
235.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
6 pcs.
39.2343 €

Heat shrink boot, 346501-000, Raychem

This heat shrink boot is designed for use in conjunction with Zerohal cable and tubing for applications where hazard reduction in the event of fire is crucial. The material exhibits excellent fire safety characteristics combined with low-smoke and low-acid-gas emission while retaining good mechanical and fluid-resistant properties.

Features

  • Heat-shrinkable, semiflexible molded shapes for low fire hazard applications
  • Low-smoke index
  • Low-toxicity index
  • High-temperature index
Technical specifications
Filter Property Value
Version straight
max. operating temperature 105 °C
Colour black
Wall thickness 1.8 mm
contains glue inside Yes
Flammable Yes
min. operating temperature -30 °C
Logistics
Property Value
Country of origin TW
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
