LR2512 3W 0R01 | RALEC
Resistor, metal alloy, SMD 2512 (6330), 10 mΩ, 3 W, ±1 %, LR2512 3W 0R01
Unit Price (€ / pc.)
0.4284 € *
Available: 688 pcs.
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4284 €
50 pcs.
0.3332 €
250 pcs.
0.2713 €
1000 pcs.
0.2416 €
2000 pcs.
0.2166 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD precision resistors, 1.0 to 3.0 W, tolerance 1.0 %, type Ralec LR.
Low impedance resistors, made of metal alloy
Load rating 3.0 W, size 2512, type LR2512.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±50 ppm/K | |
| Technology | metal alloy | |
| Tolerance | ±1 % | |

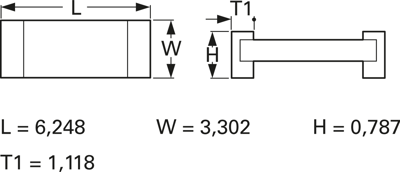

| Design | SMD 2512 (6330) | |
| ohmic resistance | 10 mΩ | |
| Power | 3 W | |
| Width | 3 mm | |
| Height | 0.65 mm | |
| max. operating temperature | 170 °C | |
| min. operating temperature | -55 °C | |
| Length | 6.248 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | TW |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
