LR1206-21R02FA | RALEC
Resistor, metal alloy, SMD 1206 (3216), 20 mΩ, 1 W, ±1 %, LR1206-21R02FA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2618 € *
Standard delivery time from the manufacturer is: On Request
SMD precision resistors, 1.0 to 3.0 W, tolerance 1.0 %, type Ralec LR.
Low impedance resistors, made of metal alloy
Load rating 1.0 W, size 1206, type LR1206.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 20 mΩ | |
| Tolerance | ±1 % | |
| Power | 1 W | |
| Design | SMD 1206 (3216) | |
| Temperature coefficient | ±50 ppm/K | |
| Technology | metal alloy | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 170 °C | |

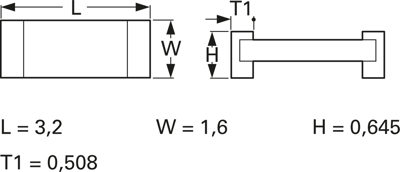

| Length | 3.2 mm | |
| Width | 1.6 mm | |
| Height | 0.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
