1.14.012.927/0000 | RAFI
Short-stroke pushbutton, Form A (N/O), 100 mA/35 V, unlit , actuator (blue), 9.7 N, THT, 1.14.012.927/0000
Unit Price (€ / pc.)
2.1301 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
25 pcs.
1.8088 €
100 pcs.
1.6779 €
450 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale

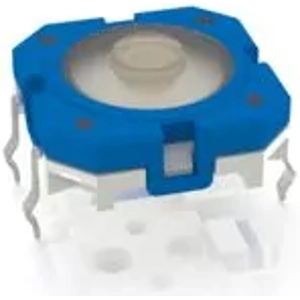

Tactile switch, 1140129270000, RAFI
Our top-quality RACON 12 tactile switches – in the dimensions 12 x 12 mm – feature an unmistakeable click, high switching reliability, a sealed contact system and castability. That has made RACON the standard in many industries. RACON 12 tactile switches can be arranged individually, in rows or as key blocks. When used beneath membrane overlays, the RACON key switches should be combined with plungers. Suitable for the most important soldering techniques.
Features
- Gold contacts, reliable switching with low currents
- Special tactile feedback
- Different operating forces
- Variable overall heights due to plunger
- Traceability through product identification
Applications
- Measurement-control-regulation
- Mechanical and system engineering
- Automotive
- Electro-medical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 15.45 mm | |
| actuating force | 9.7 N | |
| Height | 5.05 mm | |
| illuminated | No | |
| Latching switching function | Form A (N/O) | |
| Width | 12 mm | |
| Breaking capacity | 100 mA/35 V | |
| Actuator colour | blue | |
| Connection | THT | |
| Contact material | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
