1.12.000.501/0000 | RAFI

Short-stroke pushbutton, Form A (N/O), 6 A/12 VAC, illuminated, actuator (black), 14 N, THT, 1.12.000.501/0000

Order No.: 13G4272
EAN: 4099889206319
MPN:
1.12.000.501/0000
Series: KN 19
1.12.000.501/0000 RAFI Tactile Switches

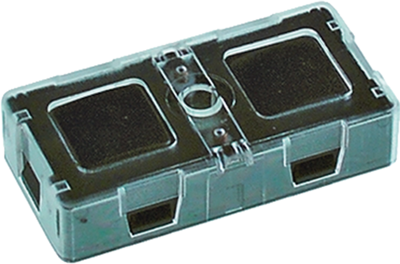

Image may differ
Unit Price (€ / pc.)
18.7663 € *
Available: 7 pcs.
Total Price:
18.77 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7663 €
12 pcs.
16.5053 €
60 pcs.
15.3867 €
156 pcs.
14.8036 €
504 pcs.
14.0658 €
*incl. VAT plus shipping costs
Subject to prior sale

Short-travel main switch, illuminated, series KN 19, type RAFI 1.12.000.

Can be installed directly into low-profile input systems. Contact gaps in accordance with VDE guidelines. Can be operated in combination with RK 90 lenses; Contact system: snap-action bridge contacts. Spot illumination with LED (max. 3.0 mm) is possible. Connections: solder pins for PCB mounting. Contact material: silver. Safety: NC contacts, force released to IEC 60947-5-1. Degree of protection: IP 40. Actuating force: max. 9.0 N. Actuating travel: 0.55 mm. Switching voltage: 12 to 250 VAC, 12 to 50 VDC. Resistive load: 0.1 to 10 ADC, 6.0 AAC. Capacitive inrush current: max. 100 A AC. Motor/glow lamp current: 4.0/2.4 AAC. Contact resistance (new condition): max. 50 mohm. Bounce time: max. 10 ms. Operating temperatures: –25 to +70 °C. Approbations: ENEC, UL, CSA.

Technical attributes (type, number of poles, contact type (NC = break action, NO = make action)): 1.12.000.501/0000, double-pole, 2 NC or 2 NO

Technical specifications
Filter Property Value
Connection THT
Width 18.8 mm
Actuator colour black
Latching switching function Form A (N/O)
Length 37.8 mm
Contact material silver-plated
actuating force 14 N
illuminated Yes
Breaking capacity 6 A/12 VAC
Height 9.7 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Original Packaging Bar with 12 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
