1.20.126.305/9000 | RAFI
Switch element, 2 Form A (N/O), 240 V, 1.5 A, 1.20.126.305/9000
Unit Price (€ / pc.)
13.9587 € *
Available: 10 pcs.
Next delivery: 10 pcs. on 2025-07-23
Total Price:
13.96 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9587 €
5 pcs.
13.2685 €
10 pcs.
12.6497 €
20 pcs.
11.9119 €
*incl. VAT plus shipping costs
Subject to prior sale

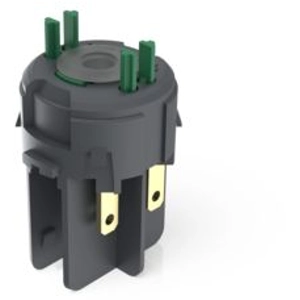

Switching element, 1.20.126.305/9000, RAFI
This switching element has external plungers and therefore can only be combined with pushbuttons, selector switches and keylock switches. The QC switching element can be latched into the actuators without the need for tools and with little effort. Wiring is performed in the conventional manner – directly with male quick-connect terminals. The fast and inexpensive version – in cases where no PCB is cost-effective.
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Signalling systems
- Vehicle construction
- Agricultural and forestry machinery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) | |
| Rated voltage | 240 V | |
| Rated current | 1.5 A | |
| can be illuminated | Yes | |
| Contact material | silver | |
| Version | switch element | |
| Connection | plug-in connection | |
| Isolation voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
