5.92.025.368/0000 | RAFI

Female connector, 4 pole, 0.1 A/25 V, (L x W x H) 7 x 9.55 x 10.6 mm, light gray, for signal lamp, 5.92.025.368/0000

Order No.: 12G4084
EAN: 4099889323757
MPN:
5.92.025.368/0000
Series: LUMOTAST FK
5.92.025.368/0000 RAFI Switches Accessories
Image may differ
Unit Price (€ / pc.)
3.2249 € *
Available: 25 pcs.
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.8322 €
100 pcs.
2.4871 €
200 pcs.
2.3919 €
1000 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

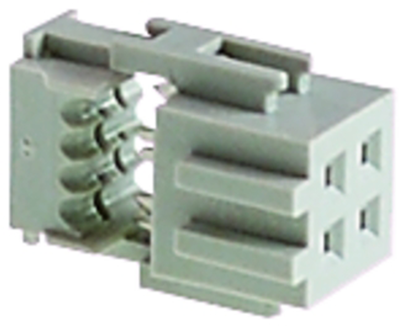

Female connector, 5.92.025.368/0000, RAFI

The female connector is equipped with insulation displacement connectors for contacting 4 - pole cables. The 4 - pole female connector is perfectly matched to the RAFI ribbon cable. The insulation displacement connector makes contact with the wires when the strip parts are pressed together.

Applications

  • Measurement-control-regulation
  • Mechanical and system engineering
  • Signalling systems
Technical specifications
Filter Property Value
Suitable for signal lamp
Version 4 pole, 0.1 A/25 V
Width 9.55 mm
Height 10.6 mm
Product type female connector
Colour light gray
Length 7 mm
Logistics
Property Value
Country of origin DE
Original Packaging Bar with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
